Magnetic Stirrer

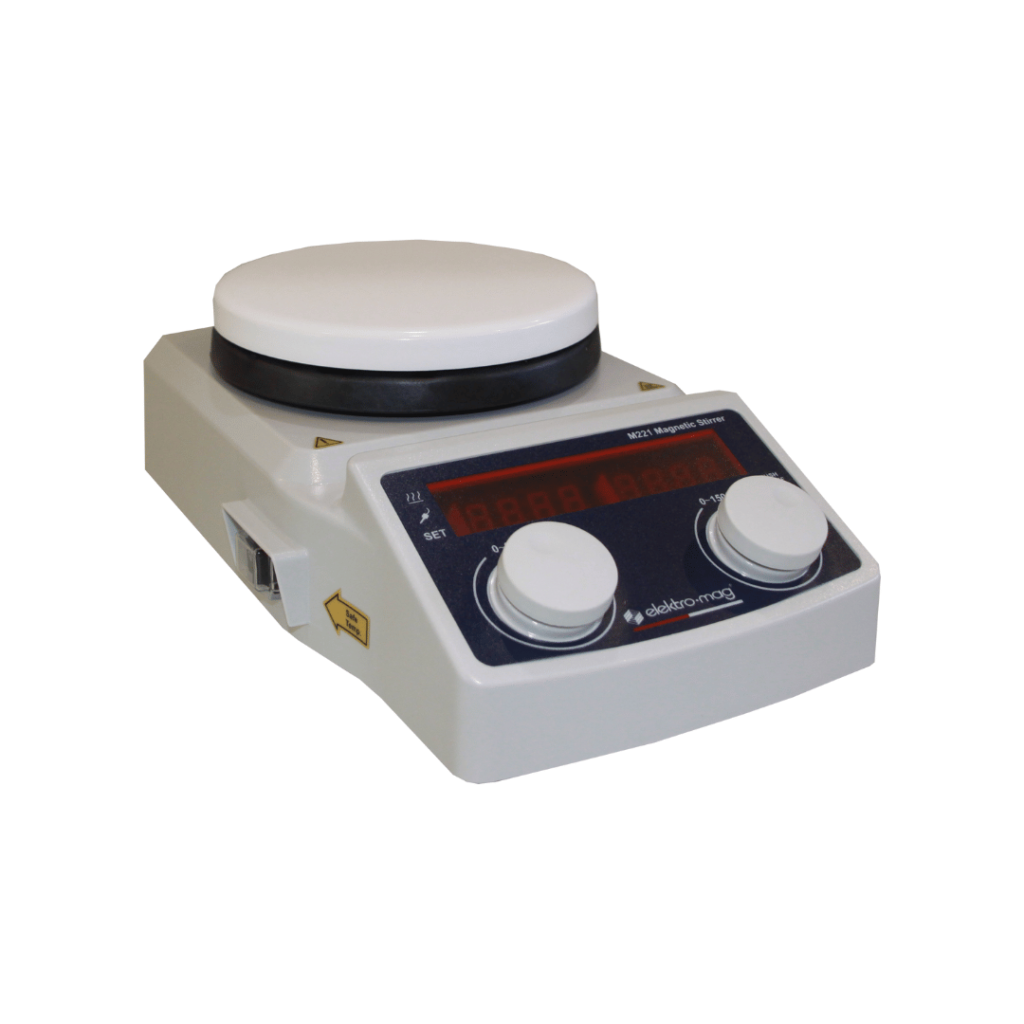

Electro-mag M 221 is a high-performance, digitally controlled magnetic stirrer specially designed for both heating and homogeneous stirring of liquids in laboratory environments. With its powerful 600 W heating capacity and temperature range of 50°C to 310°C, it offers a wide range of applications. Stirring is performed using a PTFE-coated magnetic stir bar, and both the temperature and stirring speed can be adjusted with high precision thanks to the PID-controlled LED digital thermostat.

Technical Specifications
Stirring Speed: 100 – 1500 rpm
Heating Plate: Ceramic-coated stainless steel
Heating Power: 600 W
Temperature Range: 50°C – 310°C
Temperature Accuracy: ± 0.1°C
Stirring Control: LED Digital Thermostat
Plate Size: Ø135 mm
Timer: 1 minute – 59 hours 59 minutes
Motor Power: 3 W (induction type, maintenance-free)
Power Supply: 190 – 240 V / 50 – 60 Hz
External Probe / Support Rod: Optional
Device Dimensions: 268 x 85 x 160 mm
Net Weight: 1.8 kg
Packaged Weight: 2.5 kg

Applications
Electro-mag M 221 can be used safely in many laboratory processes in chemistry, biotechnology, pharmaceuticals, food, and other industrial fields for reaction preparation, sample heating, dissolving, and homogeneous stirring operations. It can provide mixing even in closed-atmosphere systems without direct contact.

Advantages

• Precise temperature control with PID digital thermostat

• Durable stainless steel body

• User-friendly interface and safe operation

• Compact design enables easy transport and space-saving

• Optimized technology for long-term use
